Geometric & Shaped Windows

Geometric & Shaped Windows in Miramar, FL | Sightline Windows & Doors Miramar

Geometric and shaped windows bring architectural character to homes that standard rectangles can’t match. In Miramar, FL, where the Florida Building Code demands hurricane-impact protection across every opening, these custom configurations let you build gable-end triangles, octagonal stairwell accents, curved transoms, and hexagonal feature windows without sacrificing wind-zone compliance. Sightline Windows & Doors Miramar fabricates and installs triangular, hexagonal, octagonal, and curved impact-glass configurations from our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass product lines. Every unit is custom-built to your rough opening and engineered to High-Velocity Hurricane Zone standards. We’ve installed shaped windows across Miramar’s residential neighborhoods, from Mediterranean-influenced estates near Miramar Parkway to coastal-exposure builds closer to the Broward-Palm Beach line. Call (754) 260-1468 to schedule your free on-site measurement and quote.

Call (754) 260-1468

Product Overview - Geometric & Shaped Windows

Standard windows fit standard walls. But gable ends, vaulted ceilings, turret walls, and custom entryways demand something else. Geometric and shaped windows answer that need with impact-rated glass in configurations that break from the rectangle.

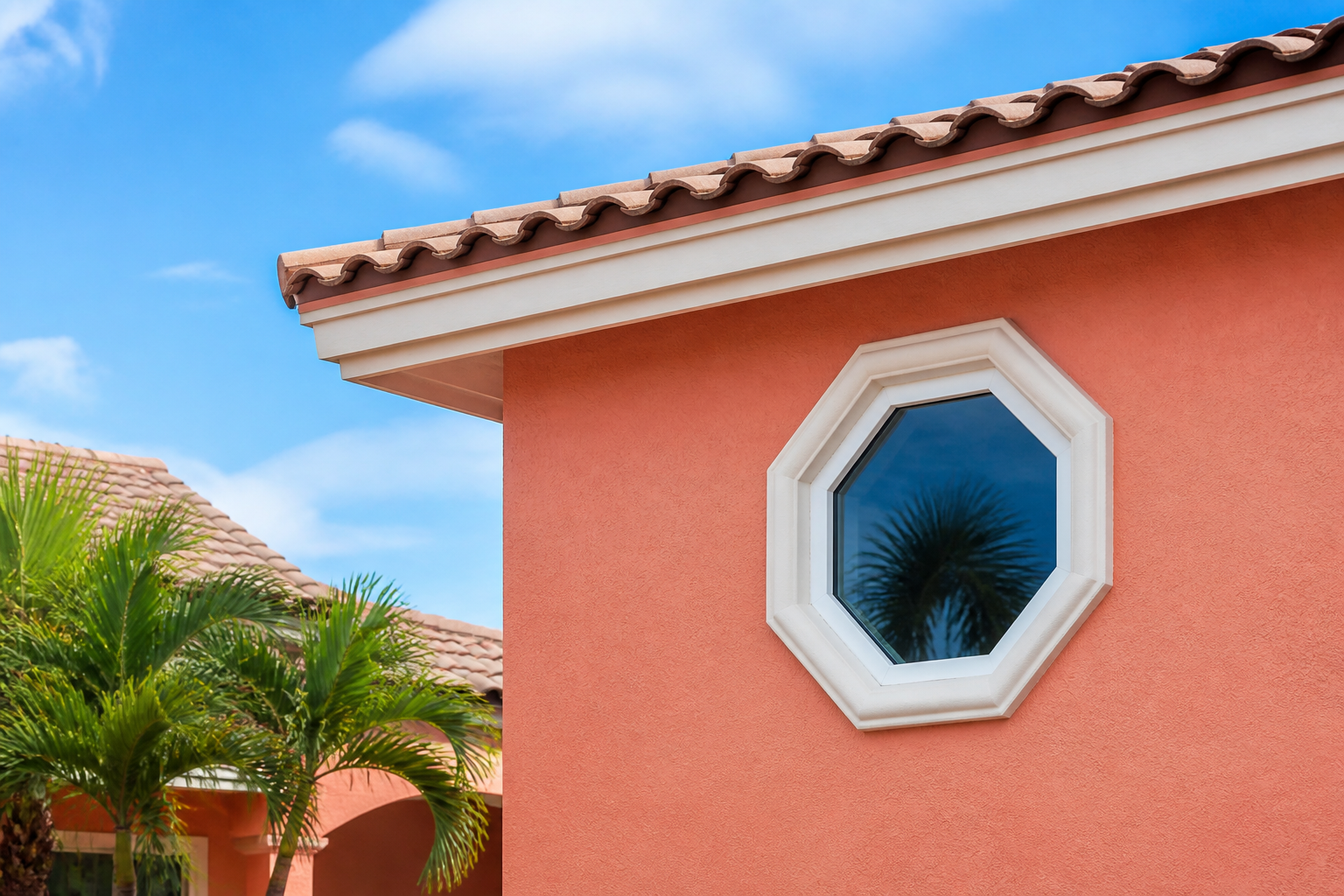

Triangular units cap A-frame and gable-end walls. Hexagonal and octagonal windows create focal points in stairwells, foyers, and master suites. Curved and radius-top configurations soften rooflines and arched openings. Every profile is custom-fabricated to your exact rough opening dimensions, not pulled from a warehouse shelf and trimmed to fit.

What makes these suited to hurricane-prone construction in Miramar starts with the laminated impact glass. A PVB interlayer bonds glass plies together so the lite stays in the frame even after cracking under debris impact. The framing, whether aluminum or vinyl, is reinforced at miter joints and reinforced with internal chambers or thermal breaks depending on material. Sightline Windows & Doors Miramar sources these units through manufacturers who maintain Miami-Dade NOA and Florida Product Approval listings per specific configuration, size, and glazing combination. That means your octagonal bedroom window carries the same code recognition as a rectangular single-hung in the same wall.

Architecturally, shaped windows work where you want daylight, views, or exterior expression without operable function. They’re fixed-lite designs, which simplifies the engineering. No moving sashes, no balance systems, no screens. Just glass, frame, and the structural connection to your wall that keeps wind and water out when a storm tracks across Broward County.

Before

After

Technical Specifications

Frame Materials

• Aluminum - thermally improved options available, suited to larger spans and coastal exposure
• Vinyl - multi-chambered profiles with welded corners, strong thermal performance

Glass Options

• Laminated Impact Glass with PVB interlayer - the HVHZ-compliant standard
• Low-E Insulated Glass - dual-pane with low-emissivity coating for solar heat gain control
• Tinted Glass - gray or bronze tints for glare reduction and privacy
• Clear Glass - maximum visible light transmission where solar control is less critical

Color and Finish Options

• White
• Almond
• Bronze
• Black
• Tan

Size Range

Custom fabricated to order. No catalog maximum - engineering and NOA listing govern per-configuration limits.

Design Pressure Rating

Matched to your specific wind zone, up to +/-100 PSF. Never rated higher than the application requires.

Hurricane & Compliance Performance

Laminated Impact Glass

The PVB (polyvinyl butyral) interlayer holds shattered glass in the frame upon impact. Even if the outer lite cracks under wind-borne debris, the membrane keeps the opening sealed against wind pressure and water intrusion. This is the foundational technology behind all HVHZ-rated glazing.

Miami-Dade NOA and Florida Product Approval

Every geometric configuration carries its own Notice of Acceptance or Florida Product Approval number. These are issued per size, shape, frame material, and glazing package. Sightline Windows & Doors Miramar verifies the correct NOA for your specific quote and provides documentation for permit submittal.

FBC High-Velocity Hurricane Zone Compliance

Engineered to Florida Building Code HVHZ requirements. In Miramar, this means your shaped window meets the same structural standards as any other impact-rated opening in your envelope. No exemptions, no shortcuts.

TAS 201 / 202 / 203 Testing Context

HVHZ-rated products undergo the complete protocol family: TAS 201 for large-missile impact resistance, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. These tests simulate the conditions a window faces during and after a hurricane event in South Florida.

Design Pressure Matched to Your Wind Zone

Design pressures are specified per project location, not maximized for marketing. In Miramar, we match the PSF rating to your wind zone requirements, up to +/-100. A properly specified window performs without being over-engineered at your expense.

Energy Performance Options

Low-E insulated glass packages reduce solar heat gain and improve thermal performance without compromising impact rating. In Miramar’s climate, this matters for west-facing gable windows and southern exposures where afternoon heat loads peak.

Color & Glass Options

Miramar’s architectural character runs toward Mediterranean, coastal contemporary, and Florida ranch styles. Our finish options align with that palette.

White and almond remain the most requested colors across Broward County, pairing cleanly with stucco and painted trim. Bronze and tan suit earth-tone exteriors and natural stone facades, softening the window’s visual weight on the wall. Black has gained traction in modern and transitional homes, particularly on geometric shapes where the frame becomes intentional contrast against light stucco or siding.

Glass selection depends on orientation and function. Clear glass maximizes daylight in shaded north-facing applications. Tinted glass, in gray or bronze, cuts glare and reduces solar heat gain on west and south walls where Miramar’s afternoon sun is most intense. Low-E insulated glass is the practical choice for most conditioned spaces, reflecting infrared heat while maintaining visible light. The laminated impact glass with PVB interlayer is non-negotiable for HVHZ compliance and forms the base of every configuration we quote.

Installation by Sightline Windows & Doors Miramar in Miramar

A NOA-rated window is only as good as its installation. Improper setting, shimming, or perimeter sealing compromises the engineered system and voids the compliance chain your permit inspector will follow.

Our process starts with a pre-install inspection of the rough opening. We verify square, level, and plumb before the window ships from fabrication. Geometric and shaped units have no field adjustment tolerance, so measurements are confirmed twice. Once on site, we set the frame with composite shims at bearing points, anchor through the jamb or fin per the manufacturer’s NOA detail, and check diagonals before final fastening.

Perimeter sealing follows AAMA 812 standards using low-expansion foam sealant. This creates a continuous air and water barrier between frame and rough opening without the distortion that standard expanding foam can cause on large or irregular shapes. Our installation practice meets AAMA 2400 and 2410 standards for fenestration installation, the recognized protocols for proper window setting in residential construction.

In Miramar, we work within HVHZ permitting requirements. That means the NOA or Florida Product Approval number for your specific configuration appears on the permit application, and the installed unit matches that documentation. We coordinate with your contractor or directly with the building department as needed. Final water testing confirms weeping, drainage, and seal integrity before we clean the site and turn the opening over to your finish trades.

Coastal exposure near Miramar’s eastern edges adds salt-air corrosion considerations. Aluminum frames receive proper isolation from dissimilar metals. Vinyl profiles avoid the issue entirely. Either way, the installation is built to outlast the first re-paint cycle.

Frequently Asked Questions - Geometric & Shaped Windows

What wind zone and design pressure is the Geometric & Shaped Windows rated for?

Design pressures are matched to your specific wind zone, up to +/-100 PSF. In Miramar, we specify the rating based on your address and the Florida Building Code wind speed map, never higher than required. Call (754) 260-1468 and we’ll confirm the exact PSF for your project during your free estimate.

What is the lead time for custom geometric windows?

Lead times vary by manufacturer line, shape complexity, and current production schedules. PGT and CGI typically run 8-12 weeks for custom geometries. ES Windows and CWS may extend longer for non-standard configurations. We quote current lead times with every proposal so you can plan your construction sequence. Call (754) 260-1468 for the most up-to-date timeline on the line that fits your budget and aesthetic.

Does my permit require a Miami-Dade NOA or Florida Product Approval submittal?

Yes. Miramar enforces Florida Building Code HVHZ requirements, and your building department will require the NOA or Florida Product Approval number for the exact configuration, size, and glazing package being installed. Sightline Windows & Doors Miramar provides this documentation with every quote and coordinates submittal with your contractor or permit expeditor. Call (754) 260-1468 to start the specification process.

Can I customize the size, shape, or configuration?

Every geometric and shaped window we sell is custom-fabricated to your rough opening. Triangles, hexagons, octagons, trapezoids, and curved or radius-top profiles are all available within the engineering limits of the manufacturer’s NOA. We measure, draft, and submit for approval before fabrication begins. Call (754) 260-1468 to schedule a site measurement and explore what’s possible for your opening.

How do I maintain the frame and glass?

Rinse aluminum and vinyl frames quarterly with fresh water to remove salt and dust accumulation, especially if you’re within a few miles of the coast in Miramar. Wash glass with mild soap and water; avoid abrasive pads that scratch the Low-E coating. Inspect perimeter sealant annually for cracks or separation. Do not pressure-wash directly at frame joints. For any hardware or seal concerns, call (754) 260-1468 and we’ll assess whether service or adjustment is needed.

Get a Quote - Geometric & Shaped Windows in Miramar

Geometric and shaped windows transform ordinary walls into architectural statements. In Miramar, you don’t have to choose between that character and hurricane protection. Sightline Windows & Doors Miramar custom-specifies, fabricates, and installs impact-rated geometric windows across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines. Every quote includes verified NOA documentation, wind-zone-appropriate design pressure specification, and installation per AAMA 2400/2410 practice standards. Call (754) 260-1468 to schedule your free on-site measurement and written estimate.

Written by the team at Sightline Windows & Doors Miramar, serving Miramar and Broward County homeowners since 2018.
